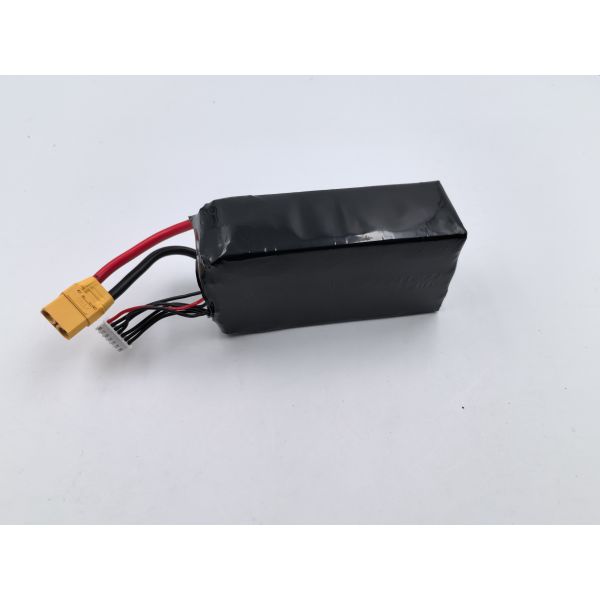

3000mAh 4S LiPo Battery - 14.8V Competition Drone Battery for FPV Racing Quads & Fast RC Models

3000mAh 4S LiPo Battery - 14.8V Competition Drone Battery for FPV Racing Quads & Fast RC Models

Features

• Ultra-High Discharge Performance: Exceptional 100C continuous rating provides incredibly responsive power delivery with minimal voltage sag, ideal for applications demanding maximum instantaneous thrust and acceleration.
• Lightweight & Agile Power Source: Weighing just over 300g, this pack offers an outstanding power-to-weight ratio, enhancing the agility and responsiveness of vehicles and aircraft by minimizing mass.
• Superior Voltage Stability: Maintains a strong voltage under heavy load, ensuring consistent performance for electronics and motors throughout the flight or run, crucial for competitive events.
• Compact and Versatile Form Factor: Its moderate size allows for flexible mounting on a wide variety of platforms without being overly bulky, fitting popular frame designs.
• Competition-Grade Construction: Utilizes high-performance, low-resistance LiPo cells and quality components to handle extreme power demands reliably.

Specifications

Applications

• 5-Inch FPV Racing Drones: The standard for competitive racing quads where low weight and explosive power are critical for winning.
• Aggressive Freestyle FPV Drones: Provides the instantaneous "punch" needed for complex tricks, dives, and rapid direction changes.
• High-Speed RC Cars and Boats: Suitable for 1/10 and 1/8 scale electric models where high burst current translates to rapid acceleration.
• Performance RC Airplanes and Helicopters: Powers aerobatic and 3D flying models that require quick throttle response and high power density.
• High-Power Custom Electronics and Prototypes: For projects needing a compact, high-current 14.8V DC power source.

Warnings & Precautions

Charging

• Dedicated Charger Required: Use ONLY a computerized LiPo Balance Charger. Set to: LiPo, 4S (14.8V).
• Recommended Charge Rate: 1C (3.0A) is recommended for maximum battery life. Do not exceed 5C (15.0A).
• Mandatory Active Supervision: NEVER leave charging batteries unattended. Charge inside a LiPo Safety Sack or fireproof steel box on a non-flammable surface.
• Balance Charge Every Time: ALWAYS connect both the main XT60 and the 4S JST-XH balance plug to ensure safe, even charging across all cells.
• Stop Immediately if Abnormal: Disconnect at once if you observe: puffing, heat >50°C (122°F), strange odor, leaking, or any physical damage.

Discharging

• Strict Voltage Limits: NEVER discharge below 12.0V (3.0V per cell). NEVER charge above 16.8V (4.2V per cell).
• Temperature Monitoring: Operate within -10°C to 60°C. Optimal range is 20°C-45°C. Let the pack cool to near room temperature before recharging.
• Pre-Use Inspection: Visually check for swelling, punctures, or wire damage before each use. RETIRE the battery immediately if damaged.
• Prevent Short Circuits: ALWAYS keep the XT60 connector insulated with a cap when not in use. Exercise extreme caution to avoid terminals touching metal.
• Environmental Care: Protect from water, rain, and direct sunlight. Do not leave in a hot car.

Storage

• Storage Charge: For storage >2 days, set to Storage Voltage (3.80V-3.85V per cell / 15.2V-15.4V total) using your charger's storage mode.

• Safe Storage: Store in a cool, dry place (10°C-25°C) inside a fireproof container. Avoid locations with large temperature swings.

• Transportation: For air travel, terminals must be protected. As a ~44Wh battery, it is well under the 100Wh carry-on limit (verify airline policies for quantity).
